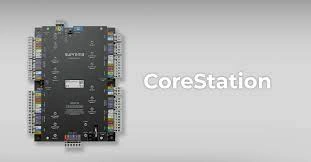

Core station CS-40

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control system. Designed to accommodate enterprise-level systems, the CoreStation can store up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With its high-performance, biometric readiness, Ethernet communication, CoreStation is also capable of offering the full features of the BioStar 2 platform.

• Users: 500,000
• Number of fingers per user: 10
• CPU: 1.4 GHz Octa Core
• Memory: 8GB Flash + 1GB RAM
• Security: Optional (ENCR-10)
• Ethernet: 10/100 Mbps, auto MDI / MDI-X
• RS-485: 5 Channels OSDP V2 Compliant
• Wiegand: 4 Channels
• Relays: 4
• TTL output: 8 ch (TTL input selectable)
• AUX input: 2 ch (AC POWER FAIL, TAMPER)
• Maximum RS-485 slave devices: 64 (Max. 31 per port)
• Maximum Wiegand Devices: 132 (with DM-20)
• Certifications: CE, KC, RoHS, REACH, WEEE
